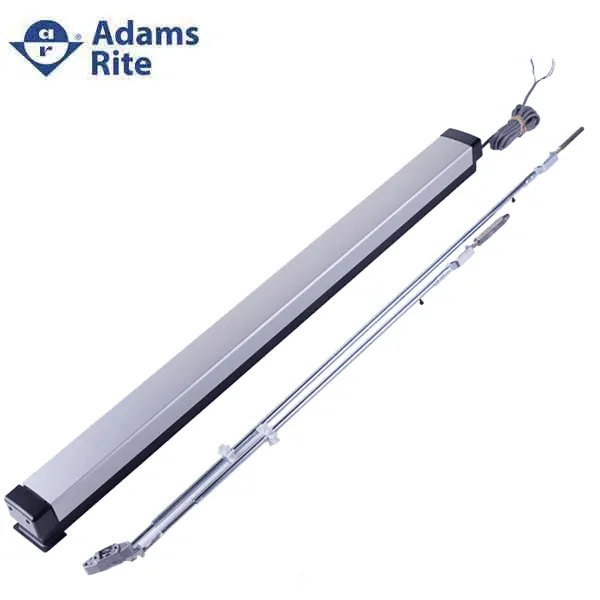

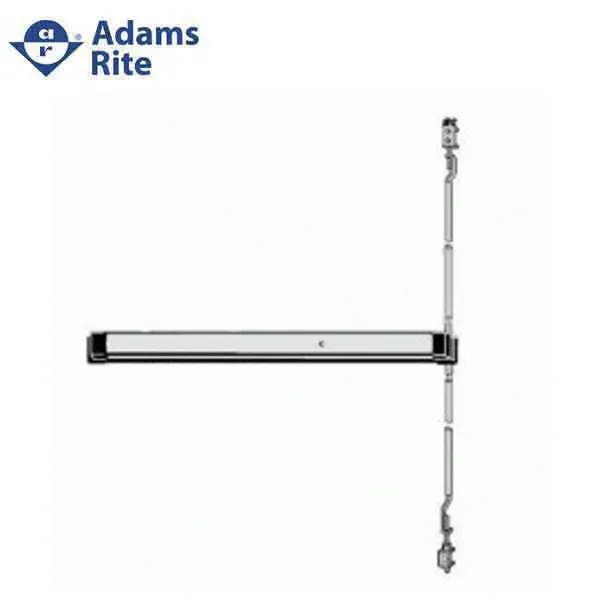

The 8600 Series narrow stile concealed vertical rod exit device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking. The patented top-latching mechanism interlocks the door to the frame. Strong, durable construction for a high level of security. Easy to install. Clean, unobtrusive design. Adjustable steel rods protected in contoured covers.
Features:
- The LR option uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device.
- Because the electrical operation of the device is fail-secure, this option can be used on fire-rated as well as life-safety applications. In the event of a power failure, the device automatically relocks.
- Fits a 36' door opening.
- Door Height Standard unit adjustable for doors up to 66" above the bar height.
- The patented top latching mechanism interlocks the door to frame
- Strong, durable construction for a high level of security
Specifications:
| Application | Single or pair doors |
| Cylinder | Not Included |
| Device Type | Concealed Vertical Rod |
| Dogging Options | Hex Key Standard |
| Door Height | 8 ft |
| Door Material | Aluminum |
| Door Thickness | 1-3/4" - 2-1/4" (44.5mm - 57.2mm) |
| Fasteners | Standard Machine Screws |
| Warranty | 5-Year Limited Manufacturer's warranty From the date of manufacture |
| Hand | Non-Handed |
| Projection | 2-5/8" (66.7mm), 1-5/8" (41.3) when Dogged |
| Rated Opening Compliant | No |
| Standards | UL305 Panic Hardware, ANSI/BHMA |
| Stiles | 2" (50.8mm) Minimum |
| Trim | Not Included |
