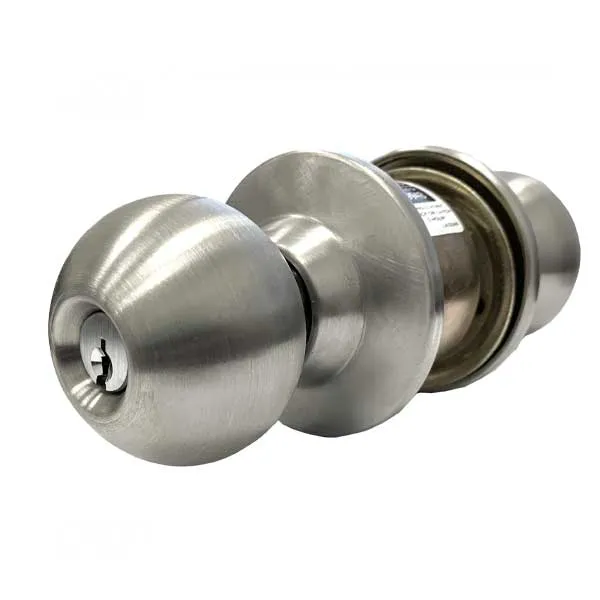

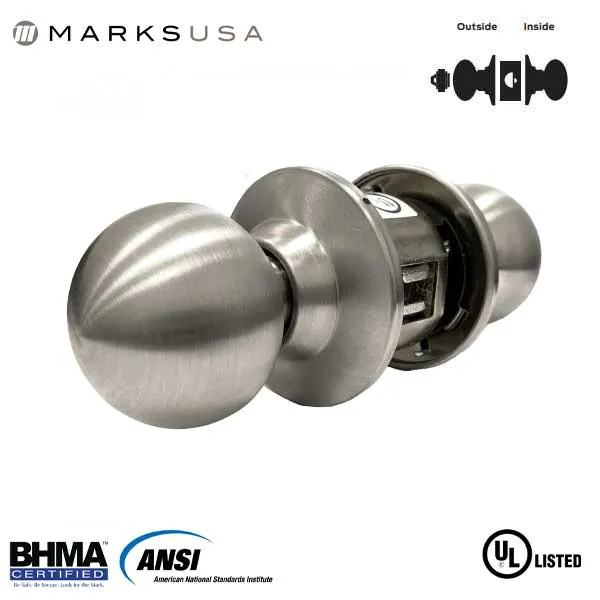

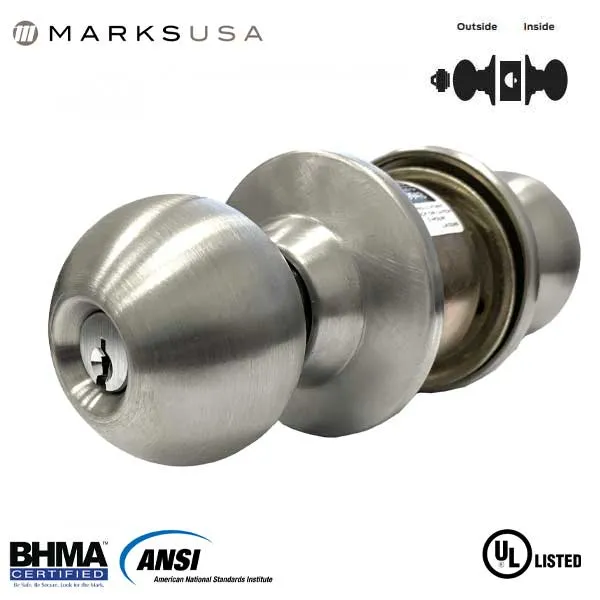

Marks USA 10 LINE Locksets are designed for use in situations where durability is the deciding factor. These cylindrical lock chassis are all constructed with cast retractors on bronze roller bearings. This strong, durable component gives these cylindrical sets the ability to last millions of cycles.
More Details Below
| Function | F86 Storeroom |
| Backset | 2-3/4” backset, 1-1/8” x 2-1/4” face |
| Latch | #1138, Front 1” x 2-1/4”; Throw 1/2”; Stainless steel nose |
| Knobs | 2-1/4” dia. (110) round; 2-3/16” dia. (210) ball |
| Roses | Adjustable both sides; Steel reinforced 2-3/4” dia. |
| Strike | #1136, 2-3/4” “T” strike |
| Door thickness | 1-5/8” to 1-7/8” |
| Cylinder | MARKS “C” keyway, 6 pin w/ 2 keys |
| Keying | KA up to 12 |
| Certification | ANSI-A156.2 Grade 2 Plus 3 Hour Fire Rating |
